M8 Series Field Wireable I/O Connectors

60V AC/DC ; Max 4A
IP65 ; -20 ~ +85°C ; CE/Rohs Compliance
Max Wire Gauge: 0.5mm
Max Adaptable Cable Dia: 5.0mm
Product description: The Field Wireable I/O Connector series products are widely used in Mechanical, Energy, Power, Auto and 3C industry. In accordance with all different environments, the M8 harness can also be ordered w
INQUIRY

M8 Series Male/Female Field Wireable Connectors with 3 Pin and 4 Pin configurations are available.

---------------------------------------------------------------------------------------------------------

Connector Coding System:

M8- X 0X X

1 2 3

1: M(Male Connector) / F(Female Connector)

2: 03(3Pin) / 04(4Pin)

3: T(Straight Type) / S (Angled type)

---------------------------------------------------------------------------------------------------------

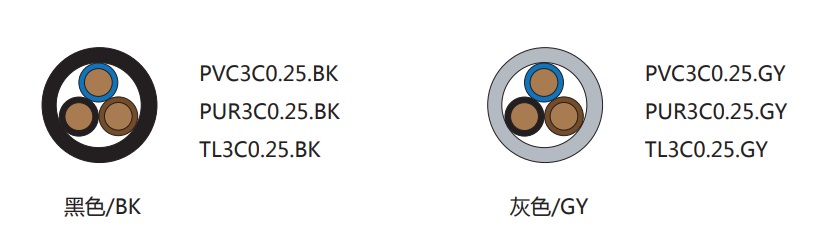

3 Pin Connector Section View and Diagrams:

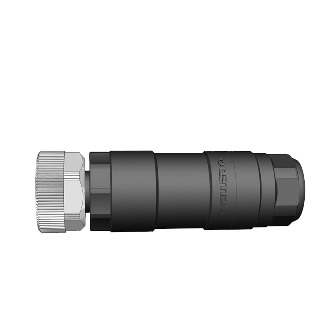

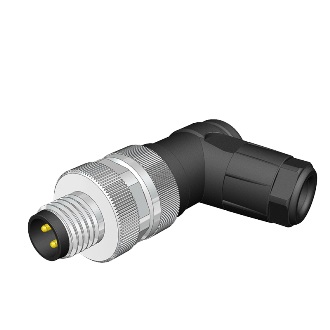

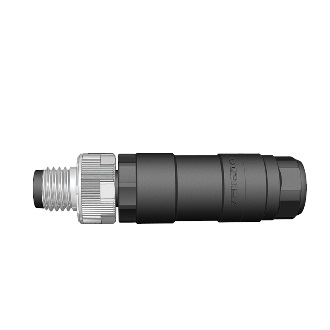

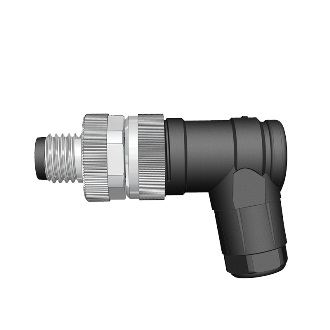

Model#: M8-M03S/M8-F03S/M8-M03T/M8-F03T

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------

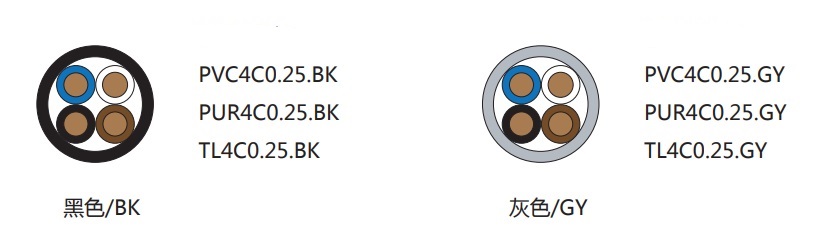

4 Pin Connector Section View and Diagrams:

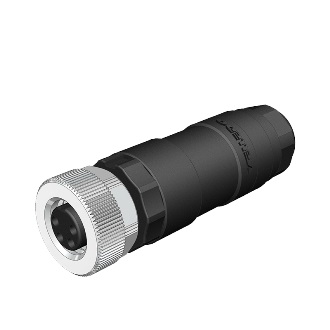

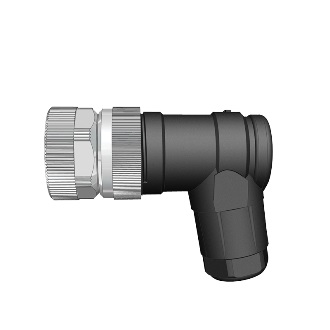

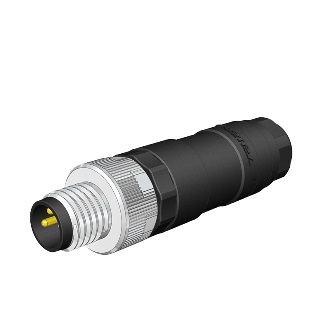

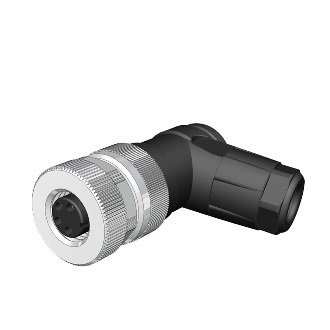

Model#: M8-M04S/M8-F04S/M8-M04T/M8-F04T

---------------------------------------------------------------------------------------------------------------------------------

Technical Notes:

General Parameters		Electrical Parameters		Material Parameters
Termination	Screw Connection	EMV compliance	Not Shieldable	Forming method	Field Installation
Number of Pins	3 Pin/4 Pin	Rated voltage	60V	Connector locking system	Bolted M8X1
Tightening torque	0.4 Nm	Contact resistance	≤3mΩ	O-Ring	NBR
Mechanical operation	> 100 mating cycles	Rated impulse voltage	800V	Plastic insulator material	PA6 (Black)
Degree of protection	IP65/IP67	Rated current (40°C)	3A	Material of contact	Cu+Zn(Alloy)
Flame retardant grade	UL94-HB	Pollution degree	3	Contact plating	Au(gold)
Implementation standard	IEC 61076-2-101	Hypot	II	Material of Housing	PA6
Operation Temperature	-20°C ~ +85°C	Isolation	II	Nut material	Brass nickel plated
